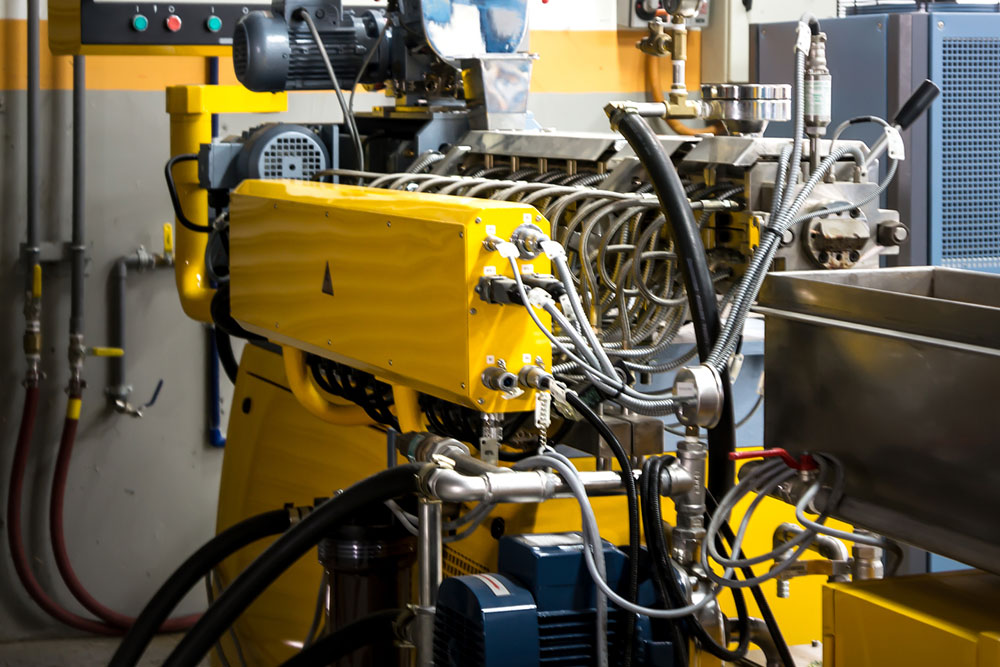

PVC extrusion machines have been a major game-changer in the plastic manufacturing industry. They work by heating and melting raw polyvinyl chloride (PVC) and forcing it out of molds of desired shapes. These machines automate the extrusion process, making them useful for various applications. Due to this, many industries that rely on PVC products use these machines to manufacture them. PVC extrusion machines also come in different types based on the extrusion process used.

PVC extrusion – Process overview

The process of PVC extrusion, which the extrusion machines follow, involves four steps—feeding, heating, extruding, and cooling.

1. Feeding
This refers to loading raw PVC material into the hopper of the extrusion machine. The raw material is usually in the form of pellets.

2. Heating
Once the raw PVC palettes are loaded into the hopper, they travel to the barrel of the machine, where they are heated until molten.

3. Extruding
After the PVC has melted, the machine forces the molten content through the die or the mold of the desired shape.

4. Cooling
As the PVC comes out of the mold in the required shape, it is quickly cooled with a water bath to retain the shape.

Features of PVC extrusion machines

1. Efficiency
One of the most important features of PVC extrusion machines is their continuous production ability. This means the machine can keep working constantly, producing desired PVC products at high speeds. Compared to traditional methods, this significantly reduces manufacturing time, improving the process’s efficiency.

2. Versatility
The dies or molds that shape the PVC products are easily customizable, which enables the PVC extrusion machines to be highly versatile. With the desired dies, these machines can produce many PVC products, such as pipes, tubes, films, sheets, and more.

3. Quality control
PVC extrusion machines also have a feature that enables the operator to set the product’s dimensions and physical properties. Based on the specific adjustments made by the operator, the machine can produce desired products with absolute precision. PVC extrusion machines have a controller that regulates the temperature, extrusion pressure, and speed of production. This ensures that all products from a single batch have consistent quality.

4. Waste reduction
Reducing plastic waste has become a major global concern. A PVC extrusion machine can address this issue effectively, as it enables the manufacturing of new products from recycled PVC waste.

5. Economic viability
A PVC extrusion machine completely automates the extrusion and manufacturing process, reducing the need for labor. This makes the whole process very cost-efficient. The machine can also perform continuous production without interruption, which adds to its cost-effectiveness.

Types of PVC extrusion machines

PVC extrusion machines are mainly available in two types, each categorized based on the extrusion process or material used.

1. Screw extruder
A PVC machine with a screw extruder makes use of a rotating screw to force the molten PVC out of the die. There are also different types of screw extruder machines based on the number of screws being used. For instance, a single-screw extruder machine uses a single rotating screw, and a twin-screw extruder machine uses a combination of two rotating screws. This makes the latter faster than the single-screw extruder and more suitable for large-volume production.

Similarly, there are three-screw extruder and multiple-screw extruder machines available, which can further increase the output speed and work with even more load.

2. RAM extruder
Unlike a screw extruder, a RAM extruder machine uses a plunger or a stamping material. This plunger stamps on the molten PVC to push it out of the die. Based on the requirements, one can also get a RAM extruder machine with two plungers.

Applications

1. Electrical industry
PVC is one of the most commonly used materials for electrical wire insulation. It also makes wires fire-resistant and more durable, so PVC extrusion machines can prove highly beneficial for the electrical industry.

2. Plumbing industry
The plumbing industry heavily depends on PVC extrusion machines, as PVC is the main component used to make pipes and fittings. The construction industry also uses PVC pipes to make plumbing fixtures for new buildings.

3. Medical device manufacturing
PVC is an essential component in instrument manufacturing in the healthcare sector. It enables the production of large volumes of healthcare supplies, such as IV tubes, blood bags, and dialysis kits.

4. Automobile industry
In the automotive sector, PVC extrusion machines are used to make car interiors, underbody coating of cars, and even electrical wire insulators.

5. Appliance manufacturing
The appliance manufacturing industry also benefits from using PVC extrusion machines, as the PVC material is often used to make gaskets, handles, and seals.
